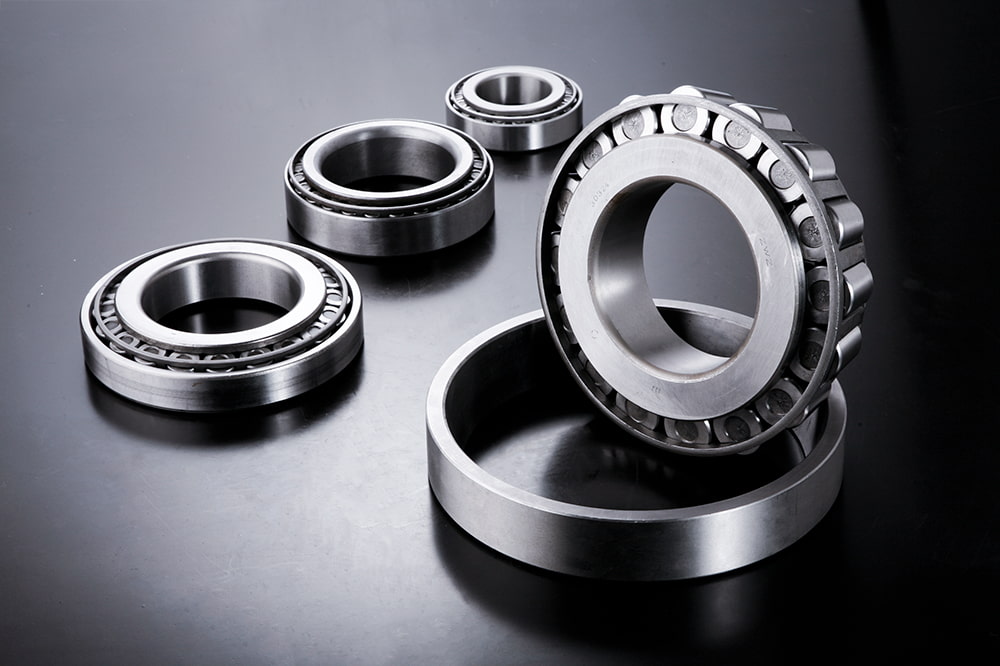

Cone series

Detailed description:

The tapered roller bearing is a separable bearing. The inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into single-row, double-row, and four-row tapered roller bearings according to the number of rows of rollers installed. Single-row tapered roller bearings can bear radial load and axial load in a single direction. When the bearing bears the radial load, it will produce an axial component, so it needs another bearing that can bear the axial force in the opposite direction to balance. The ability of a single-row tapered roller bearing to bear axial load depends on the contact angle, that is, the angle of the outer ring raceway. The larger the angle, the greater the axial load capacity. Single-row tapered roller bearing is the most widely used tapered roller bearing.

Detailed description

Bearing code

Boundary dimension of bearing

Current code

Used code

d

D

T

32013

2007113E

65

100

23.0

32014

2007114E

70

110

25.0

32015

2007115E

75

115

25.0

32016

2007116E

80

125

29.0

32017

2007117E

85

130

29.0

32018

2007118E

90

140

32.0

32019

2007119E

95

145

32.0

32020

2007120E

100

150

32.0

32021

2007121E

105

160

35.0

32022

2007122E

110

170

38.0

32024

2007124E

120

180

38.0

32026

2007126E

130

200

45.0

32028

2007128E

140

210

45.0

32030

2007130E

150

225

48.0

32032

2007132E

160

240

51.0

32034

2007134E

170

260

57.0

32036

2007136E

180

280

64.0

32038

2007138E

190

290

64.0

30211

7211E

55

100

21.0

30212

7212E

60

110

22.0

30213

7213E

65

120

23.0

30214

7214E

70

125

24.0

30215

7215E

75

130

25.0

30216

7216E

80

140

26.0

30217

7217E

85

150

28.0

30218

7218E

90

160

30.0

30219

7219E

95

170

32.0

30220

7220E

100

180

34.0

30221

7221E

105

190

36.0

30222

7222E

110

200

38.0

30224

7224E

120

215

40.0

30226

7226E

130

230

40.0

30228

7228E

140

250

42.0

30230

7230E

150

270

45.0

30232

7232E

160

290

48.0

30310

7310E

50

110

27.0

30311

7311E

55

120

29.0

30312

7312E

60

130

31.0

30313

7313E

65

140

33.0

30314

7314E

70

150

35.0

30315

7315E

75

160

37.0

30316

7316E

80

170

39.0

30317

7317E

85

180

41.0

30318

7318E

90

190

43.0

30319

7319E

95

200

45.0

30320

7320E

100

215

47.0

30321

7321E

105

225

49.0

30322

7322E

110

240

50.0

30324

7324E

120

260

55.0

30326

7326E

130

280

58.0

30328

7328E

140

300

62.0

32211

7511E

55

100

25.0


Bearing code

Boundary dimension of bearing

Current code

Used code

d

D

T

32212

7512E

60

110

28.0

32213

7513E

65

120

31.0

32214

7514E

70

125

31.0

32215

7515E

75

130

31.0

32216

7516E

80

140

33.0

32217

7517E

85

150

36.0

32218

7518E

90

160

40.0

32219

7519E

95

170

43.0

32220

7520E

100

180

46.0

32221

7521E

105

190

50.0

32222

7522E

110

200

53.0

32224

7524E

120

215

58.0

32226

7526E

130

230

64.0

32228

7528E

140

250

68.0

32230

7530E

150

270

73.0

33211

3007211E

55

100

35.0

33212

3007212E

60

110

38.0

33213

3007213E

65

120

41.0

33214

3007214E

70

125

41.0

33215

3007215E

75

130

41.0

33216

3007216E

80

140

46.0

33217

3007217E

85

150

49.0

33218

3007218E

90

160

55.0

33219

3007219E

95

170

58.0

33220

3007220E

100

180

63.0

33221

3007221E

105

190

68.0

32310

7610E

50

110

40.0

32311

7611E

55

120

43.0

32312

7612E

60

130

46.0

32313

7613E

65

140

48.0

32314

7614E

70

150

51.0

32315

7615E

75

160

55.0

32316

7616E

80

170

58.0

32317

7617E

86

180

60.0

32318

7618E

90

190

64.0

32319

7619E

95

200

67.0

32320

7620E

100

215

73.0

32321

7621E

105

225

77.0

32322

7622E

110

240

80.0

33112

3007712E

60

100

30.0

33113

3007713E

65

110

34.0

33114

3007714E

70

120

37.0

33115

3007715E

75

125

37.0

33116

3007716E

80

130

37.0

33117

3007717E

85

140

41.0

33118

3007718E

90

150

45.0

33119

3007719E

95

160

49.0

33120

3007720E

100

165

52.0

33121

3007721E

105

175

56.0

33122

3007722E

110

180

56.0

33124

3007724E

120

200

62.0

33010

3007110E

50

80

24.0


Bearing code

Boundary dimension of bearing

Current code

Used code

d

D

T

33011

3007111E

55

90

27.0

33012

3007112E

60

95

27.0

33013

3007113E

65

100

27.0

33014

3007114E

70

110

31.0

33015

3007115E

75

115

31.0

33016

3007116E

80

125

36.0

33017

3007117E

85

130

36.0

33018

3007118E

90

140

39.0

33019

3007119E

95

145

39.0

33020

3007120E

100

150

39.0

33021

3007121E

105

160

43.0

33022

3007122E

110

170

47.0

33024

3007124E

120

180

48.0

33026

3007126E

130

200

55.0

33028

3007128E

140

210

56.0

33030

3007130E

150

225

59.0

31310

27310E

50

110

27.0

31311

27311E

55

120

29.0

31312

27312E

60

130

31.0

31313

27313E

65

140

33.0

31314

27314E

70

150

35.0

31315

27315E

75

160

37.0

31316

27316E

80

170

39.0

31317

27317E

85

180

41.0

31318

27318E

90

190

43.0

31319

27319E

95

200

45.0

31320

27320E

100

215

51.0

31321

27321E

105

225

53.0

31322

27322E

110

240

57.0

31324

27324E

120

260

62.0

31326

27326E

130

280

66.0

31328

27328E

140

300

70.0

397/382



57.150

98.425

21.946

390/394A



57.150

110.000

21.996

395/394A



63.500

110.000

21.996

395A/394A



66.675

110.000

21.996

399A/394A



68.236

110.000

21.996

455/453A



50.800

107.775

29.317

462/453X



57.150

104.775

29.317

489/493



84.138

136.525

29.769

495A/493



76.200

136.525

26.769

527/522



44.450

101.600

36.068

528X/520X



50.000

100.000

35.988

529/522



50.8

101.600

36.068

535/532A



44.450

111.125

36.957

539/532



53.975

111.125

36.957

539/532A



53.975

111.125

36.975

539A/532X



53.975

107.950

36.957

559/552A



63.500

123.825

36.678

566/563



69.850

127.000

36.170

567/563



70.025

127.000

36.170

569/562X



64.963

130.000

36.170


Bearing code

Boundary dimension of bearing

Current code

Used code

d

D

 T

575/572



76.200

139.992

36.098

580/572



82.550

139.992

36.098

581/572



80.962

139.992

36.098

590A/592A



76.200

152.400

36.322

593/592A



88.900

152.400

36.322

594/592A



95.250

152.400

36.322

594A/592A



95.250

152.400

36.322

645/632



71.438

136.525

41.275

677/672



85.725

168.275

41.275

740/742



80.962

150.089

46.672

749/742



85.026

150.089

46.672

760/752



90.488

161.925

48.260

782/772



104.775

180.975

48.006

799/792



128.588

206.375

47.625

835/832



68.850

168.275

56.363

843/832



76.200

168.275

56.363

842/832



82.550

168.275

56.363

850/832



88.900

168.275

56.363

855/854



88.900

190.500

57.531

857/854



92.075

190.500

57.531

864/584



95.250

190.500

57.531

861/854



101.600

190.500

57.531

896/892



136.525

228.600

57.150

898/892



139.700

228.600

57.150

898A/892



139.700

228.600

57.150

941/932



101.600

212.725

66.675

936/932



107.950

212.725

66.675

938/932



114.300

212.725

66.675

3975/3920



50.800

112.712

30.162

3975/3926



50.800

112.712

30.162

3982/3920



63.500

112.712

30.162

3984/3920



66.675

112.712

30.162

6461/6420



76.200

149.225

54.229

6580/6535



88.900

161.925

55.100

9185/9121



68.262

152.400

46.038

9278/9220



68.262

161.925

46.038

9385/9321



84.138

171.450

46.038

28985/28921



60.325

100.000

25.400

28995/28920



62.738

101.600

25.400

29590/29522



66.675

107.950

25.400

29685/29620



73.025

112.712

25.400

33225/33472



57.150

120.000

30.162

33262/33462



66.675

117.475

30.162

33275/33462



69.675

117.475

30.162

33281/33462



71.38

117.475

3.162

39578/39520



53.975

112.712

30.612

39581/39520



57.150

112.712

30.162

39585/39520



63.500

112.712

30.612

39590/39520



66.675

112.712

30.612

42381/42584



96.838

148.430

28.971

45283/45200



50.800

104.775

30.958

45290/45220



57.150

104.775

30.958


Bearing code

Boundary dimension of bearing

Current code

d

D

T

46790/4720

165.100

225.425

39.688

47487/47420

69.850

120.000

32.545

48290/48220

127.000

182.562

38.100

67390/67322

133.350

196.850

46.038

67780/67720

165.100

247.650

47.625

67791/67720

177.800

247.650

47.625

68462/68712

117.475

180.975

31.750

69354/69630

89.992

160.096

30.162

71455/71750

115.087

190.500

49.211

74537/74850

136.525

215.900

47.625

77375/77675

95.250

171.450

48.260

90381/90744

96.838

188.912

46.038

95528/95925

133.350

234.950

63.500

97500/97900

127.000

228.600

49.428

98400/98788

101.600

200.000

49.212

99550/99100

139.700

254.000

66.675

99575/99100

146.050

254.000

66.675

99600/99100

152.400

254.000

66.675

H414245/H414210

68.262

136.525

41.275

JM515649/JM515610

80.000

130.000

34.000

JLM714149/JLM714110

75.000

115.000

25.000

JM718149/JM718110

90.000

145.000

34.000

H924033/H924010

101.600

214.312

52.388

HM212047/HM212011

63.500

122.238

38.354

HM212049/HM212011

66.675

122.238

38.354

HM218248/HM218210

89.975

146.975

40.000

HM220149/HM220110

100.000

156.975

42.000

HH221449/HH221410

101.600

190.500

57.531

L225849/L225810

127.000

169.862

26.195

L225849/L225818

127.000

180.975

26.195

HM518445/HM518410

88.900

152.400

39.688

H715345/H715311

71.438

136.525

46.038

JM716649/JM716610

85.000

130.000

29.000

JM720249/JM720210

100.000

155.000

35.000

JLM813049/JLM803010

70.000

110.000

25.000

JM822049/JM822010

110.000

165.000

35.000

HH224334/HH224310

99.974

212.725

66.675

JHH224333/JHH224315

100.000

215.000

66.675

HH224340/HH224310

107.950

212.725

66.675

HM231140/HM231110

146.050

236.538

56.642

M231648/M231610

152.400

222.250

46.830

HM237532/HN237510

160.325

288.925

63.500

HM237545/HM237513

177.800

289.974

63.500

H414249/H414210

71.438

136.525

41.275

L420449/L420410

101.600

136.525

21.433

HH421246C/HH421210

98.425

184.150

63.500

JHM522649/JHM522610

110.000

180.000

46.000

JM734449/JM734410

170.000

240.000

44.900

JLM722948/JLM722912

115.000

165.000

27.000

JM738249/JM738210

190.000

260.000

44.000

HH914449/HH914412

66.675

177.800

53.975

H917840/H917810

76.200

180.975

53.183

H917849/H917810

82.550

180.975

53.183

BT1-0163/Q

82.000

140.00

36.512
