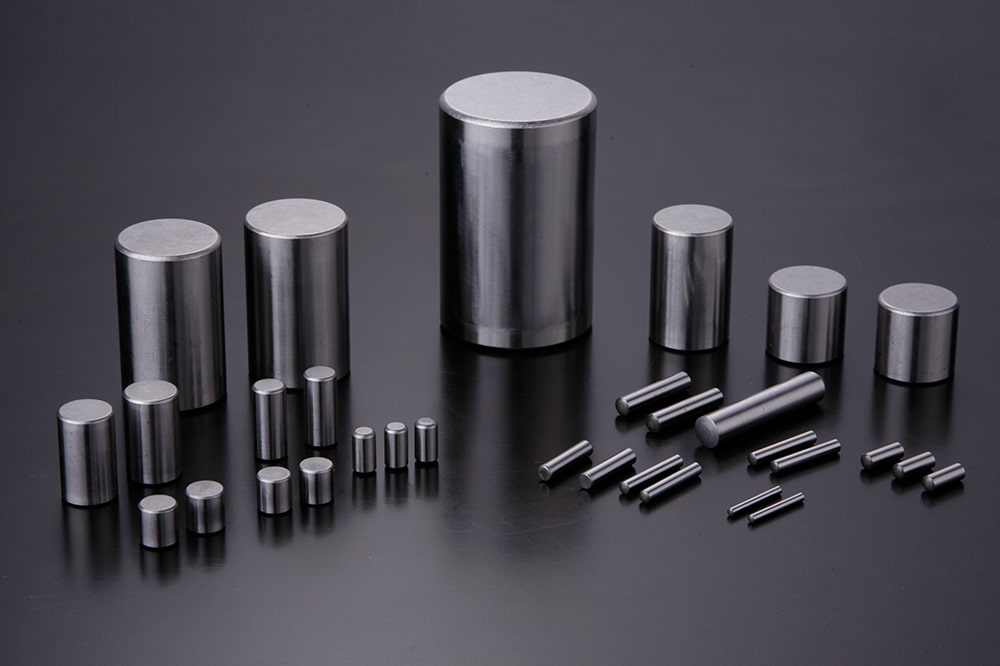

Cylindrical Roller

Detailed description:

Cylindrical roller and raceway are linear contact bearings. Large load capacity, mainly bearing radial load. The friction between the rolling element and the collar edge is small, which is suitable for high-speed rotation. According to whether the collar has a rib, it can be divided into NU, NJ, NUP, N, NF, and other single-row cylindrical roller bearings, and NNU, NN, and other double-row cylindrical roller bearings. The bearing is a separable structure of the inner ring and outer ring. Cylindrical roller bearings with inner or outer rings without ribs can be used as free-end bearings because the inner and outer rings can move relatively in the axial direction. A cylindrical roller bearing with double ribs on one side of the inner ring and outer ring, and a single rib on the other side of the ring, can bear a certain degree of axial load in one direction. Generally, a steel plate stamping cage or copper alloy turning solid cage is used. However, some of them use polyamide-formed cages.

Detailed description

Bearing code

Boundary dimension of bearing

Current code

Used code

d

D

T

NCL206V



30

62

16

NCL208V



40

80

18

NCL212V



60

110

22

NCL304V



20

52

15

NCL306V



30

72

19

NCL307EV



35

80

21

NCL308V



40

90

23

NCL309V



45

100

25

NCL310V



50

110

27

NCL313V



65

140

33

NCL314V



75

150

35

NCL407V



35

100

25

NCL409V



45

120

29

NCL308E/YA



40

90

23

NCL2305V



25

62

24

NCL306ENV/C3VA



30

72

19

NCL307E



35

80

21

NCL307E/YA



35

80

21

NCF306V



30

72

19

NCL207V



35

72

17

NCL2206V



30

62

20

NCF305V



25

62

17

NCF210VC3



50

60

20

NCF307V



35

80

21

NCL210V



50

60

20

NCF210E



50

90

20

NCL316V



80

170

39

BC1-0013DD



32

62

18

NCL2305V



25

62

24

NCL306ENV/C3YA



30

72

19

NCL307E



35

80

21

NCL307E/YA



35

80

21

NCF306V



30

72

19

NCL207V



35

72

17

NCL2206V



30

62

20

NCF305V



25

62

17

NCF210VC3



50

60

20

NCF307V



35

80

21

NCL210V



50

60

20

NCF210E



50

90

20

NCL316V



80

170

39

BC1-0013DD



32

62

18

N41627



36

72

18.97

NSKPL25-7



25

52

18

2030071



25

62

17

NCF205V



25

52

15
