NK series

Detailed description:

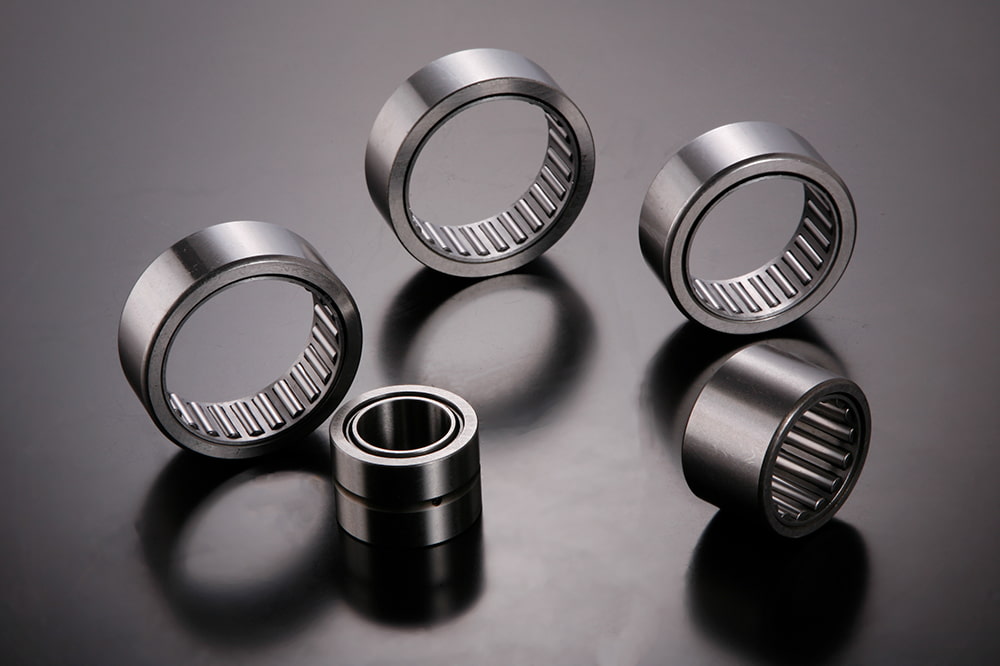

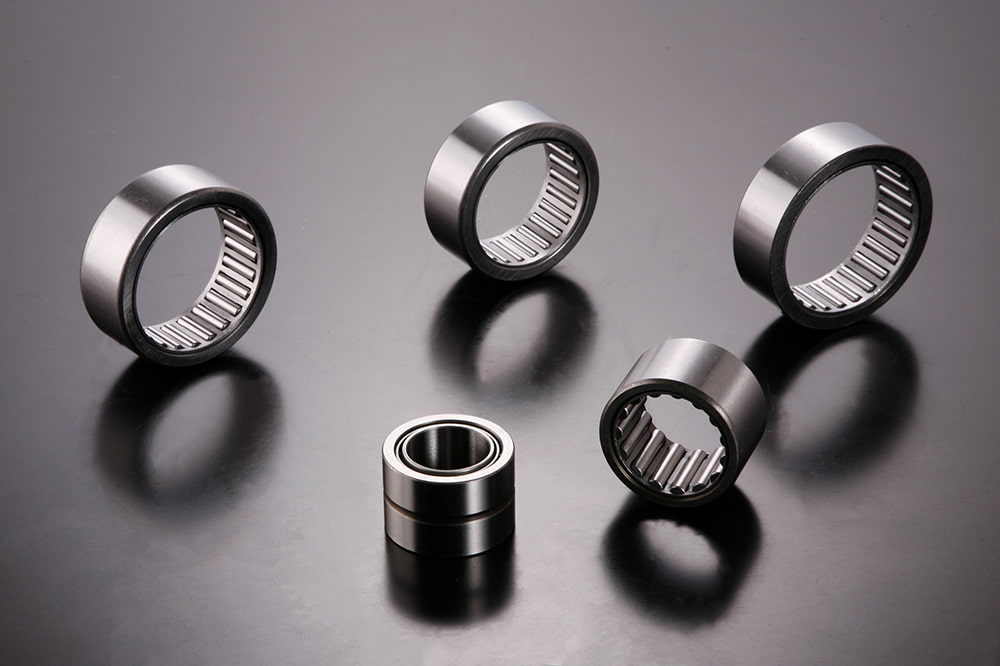

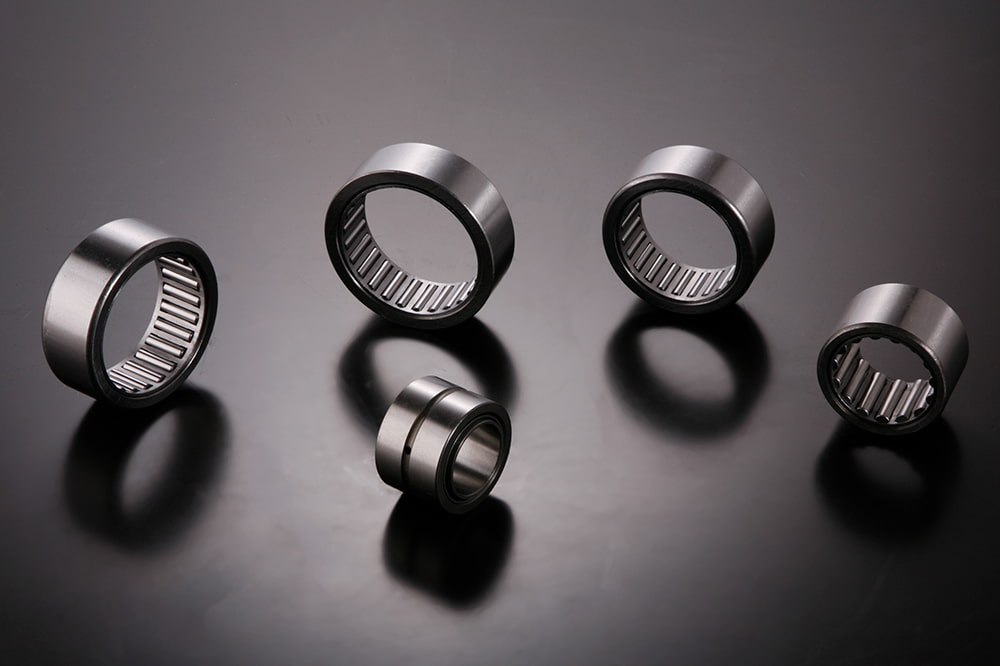

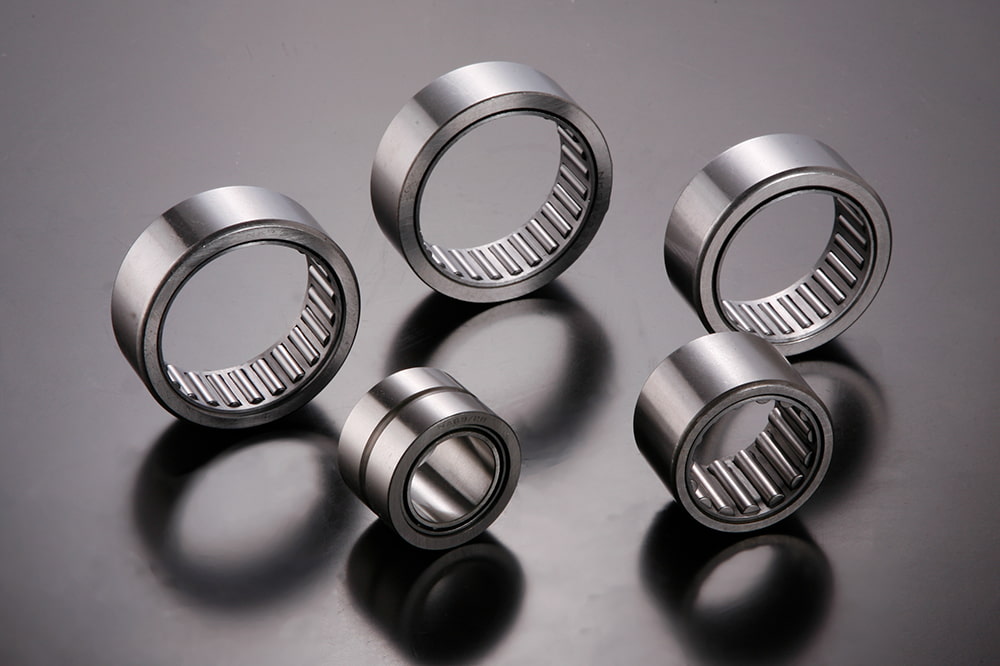

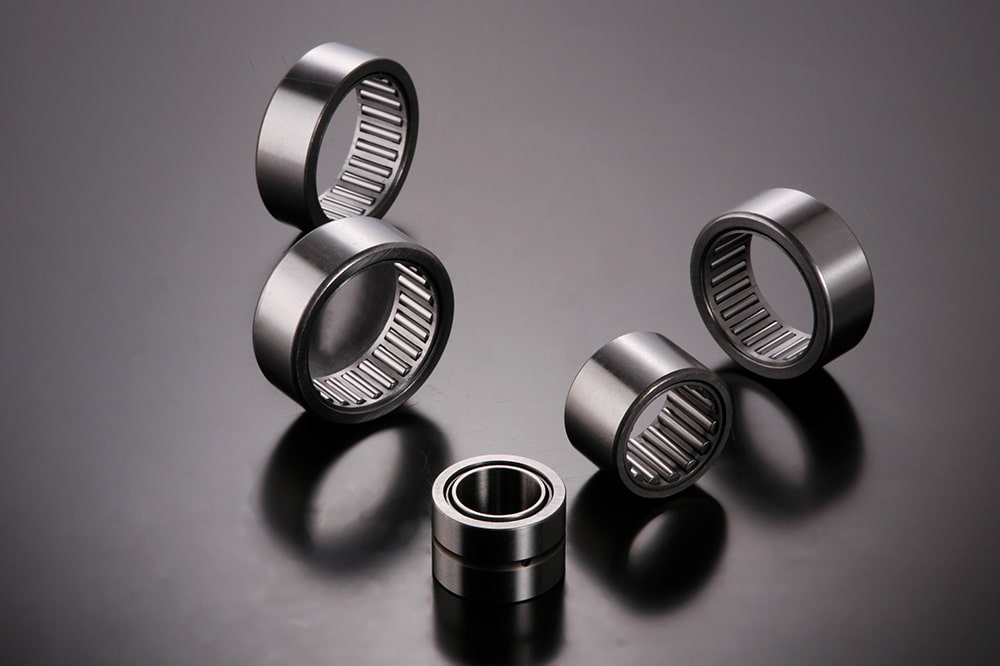

Solid ferrule needle roller bearing is composed of the machined outer ring, inner ring, cage, and needle roller, with small section height, large load capacity and rigidity, compact structure, and small volume. This type of bearing can be provided with two series of products, metric and imperial. Each series has three structures: cage, full needle type, and sealed type. In addition, the solid ferrule needle roller bearing can be divided into two structures with and without the inner ring. The structure with the inner ring can obtain higher rotation accuracy. The structure without the inner ring takes the shaft as the raceway surface, making the volume smaller.
The needle roller bearing is equipped with thin and long rollers (roller diameter D≤5mm, L/D≥2.5, L is the roller length), Therefore, the radial structure is compact. When its inner diameter size and load capacity are the same as other types of bearings, the outer diameter is the smallest, which is especially suitable for bearing results with limited radial installation size. Bearing without an inner ring or needle roller and cage assembly can be selected according to different applications. At this time, the journal surface and shell hole surface matched with the bearing are directly used as the inner and outer rolling surfaces of the bearing. In order to ensure the same load capacity and operating performance as the bearing with the ring, the hardness, machining accuracy, and surface quality of the raceway surface of the shaft or outer shell hole should be similar to the raceway of the bearing ring. This bearing can only bear radial load.

Detailed description

Bearing code

Boundary dimension of bearing

Current code

Used code

d

D

T

C44-3411109



56

80

25.4

G03-3411109

Z06-3411109

56

80

29.4

Z07-3411062



60

84

22

D54-3411424



53

70

22

D47-3411109



56

80

22

50/25.4



50

75

25.4

D54-3411104



58

75

32.5

E201-3411104



45

67

22

E201-3411424



40

57

22

NK45/22

C21-3411424

45

62

22

NK50/22

D19-3411424

50

67

22

NK50/27

A01-3411104

50

67

27

NK55/22

C21-3411104

55

72

22

NK58/25.5

D07-3400062A

58

75

25.5

NK58/27

D01-3411104

58

75

27

NK60/27

S80Z1005022

60

77

27

NK45/27

A01-3411424

45

62

27

NK50/26

DZ100-03.02

50

67

26

NK45/26

DZ100-04.02

45

62

26

NK55/35



55

72

35

NK52/22/68

4644909-A

52

68

22

NK45/22/60

46449/38-A

45

60

22

AJ28248

SBR04165.01

41.293

65.078

31.75

NK40/20

3411102

40

52

20

NK40/32

3411902

40

50

32

M11-3411424



40

57

27

NK55/27

D50-3411424A

55

72

27

Z03-3411424



56

80

22

D201-3411104



60

84

27

D201-3411424



61

77

22

B53A-3411104



50

72

22
