Needle roller series

Detailed description:

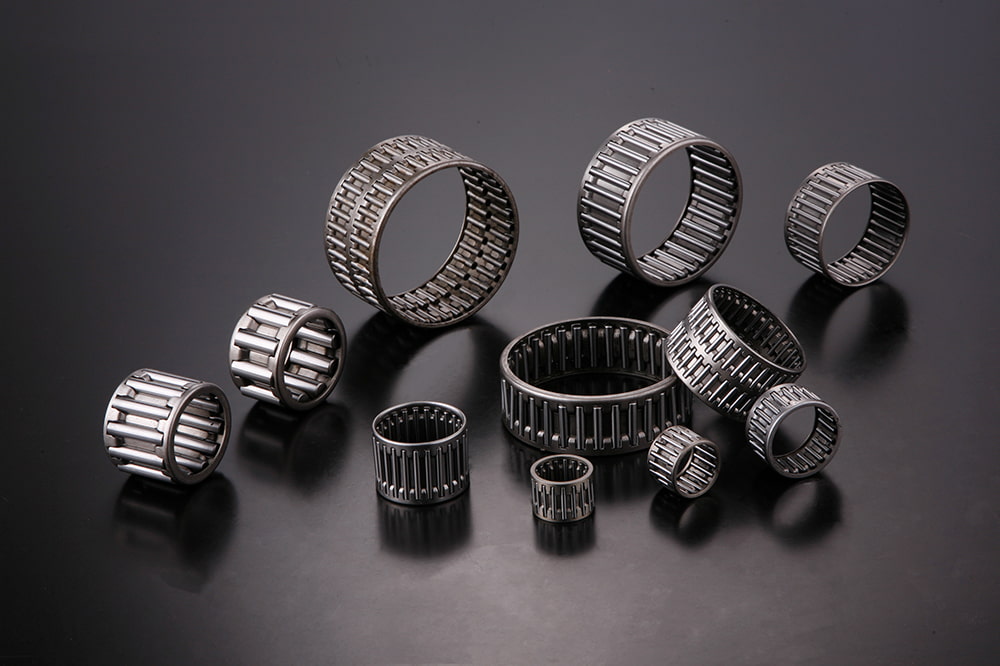

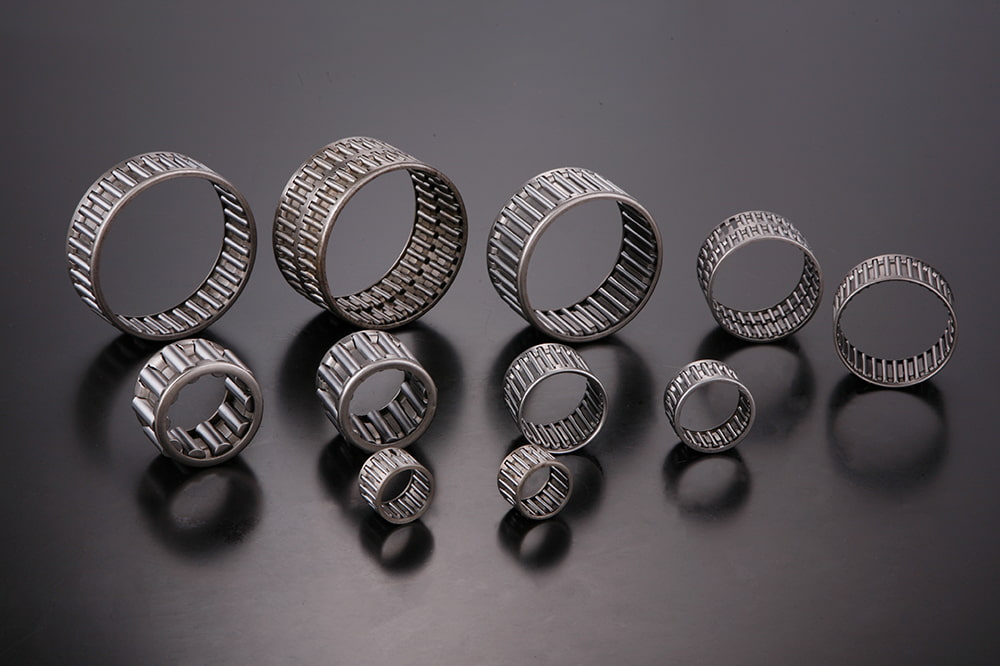

A needle bearing is a roller bearing with cylindrical rollers. The rollers are thin and long relative to their diameter. This roller is called a needle roller. Although it has a small section, the bearing still has a high load-bearing capacity. The needle roller bearing is equipped with thin and long rollers (roller diameter D≤5mm, L/D≥2.5, L is the roller length). Therefore, the radial structure is compact. When its inner diameter size and load capacity are the same as other types of bearings, the outer diameter is the smallest, which is especially suitable for bearing results with limited radial installation size. Bearing without an inner ring or needle roller and cage assembly can be selected according to different applications. At this time, the journal surface and shell hole surface matched with the bearing are directly used as the inner and outer rolling surfaces of the bearing. In order to ensure the same load capacity and operating performance as the bearing with the ring, the hardness, machining accuracy, and surface quality of the raceway surface of the shaft or outer shell hole should be similar to the raceway of the bearing ring. This bearing can only bear radial load.

Detailed description

Bearing code

Boundary dimension of bearing

Current code

Used code

d

D

T

MR445624



69.898

88.9

38.1

375018



37

50

18

3410Z



55

74

25

3401Z



55

71

25

3409H



60

80

28

K202624



20

26

24

K46.552.533



46.5

52.5

33

K283619



28

36

19

K323727



32

37

27

K354027



35

40

27

K384327



38

43

27

K384328.8



38

43

28.8

K384331



38

43

31

K384425



38

44

25

K384426.8



38

44

26.8

K404538



40

45

38

K424822



42

48

22

K455027



45

50

27

K455936



45

59

36

K475528



47

55

28

K485427



48

54

27

K525823



52

58

23

K535928



53

59

28

KK414633



41

46

33

KK455031



45

50

31

K404626



40

46

26

K404629



40

46

29

K404630.5



40

46

30.5

K434825.5



43

48

25.5

K445129



44

51

29

K505540



550

55

40

K505737



50

57

37

K505829



50

58

29

K515633



51

56

33

K212725



21

27

25

K253024



25

30

24

K424832



42

48

32

K566133



56

61

33
